Perforated Stainless Steel Plate

Decorative stainless steel sheet is a very good decorative material. In the arts and craft industry, the colorful stainless steel is combined with etching and dot method can be used to produce 3D relief murals and hanging screens that will never fade.

Our Company services:Welding, Polishing,Lettering,Slitting,Laser Cutting,Surface Treatment

Product Details

A perforated plate , as its name suggests, a metal plate with holes punched in it, known as punching plate, perforated metal, perforated screen, mostly stainless steel and other metal plates, processed by stamping machine or milling machine, with long service life without deformation and other characteristics.

Perforated metal plates have a history of nearly 150 years, originally developed as filters and sorters.Perforated plates are mainly used in mining industry.  As it turns out, with the development of technology, its use quickly expanded beyond its original function and has been widely used in architecture, landscape and interior design.Common stainless steel perforated plate is 304 stainless steel, 304L stainless steel, 430 stianless steel .

The hole size of the perforated plate and the pattern will be carefully processed and designed according to the needs. Holes of different sizes, densities and shapes will form different translucent sight effects.

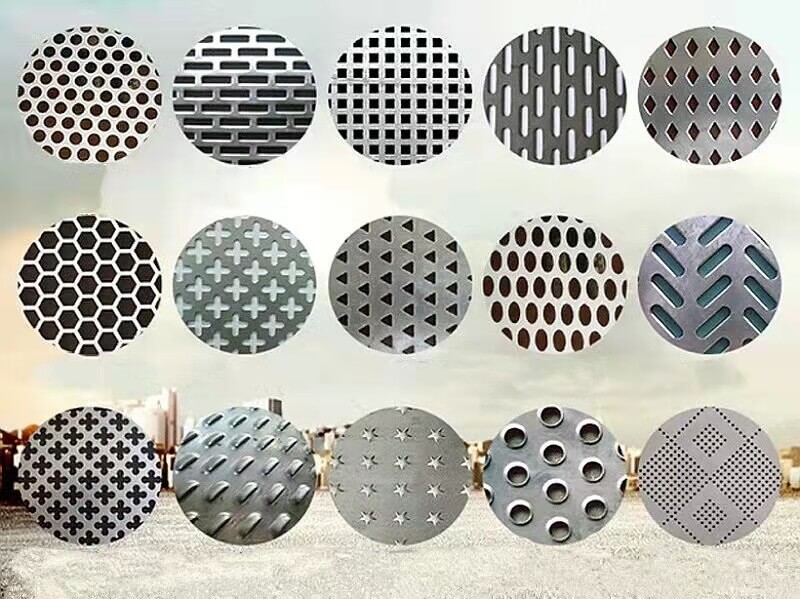

Stainless steel perforated hole pattern as below

1)circle hole 2)square hole 3)slotted hole 4)flower hole 5)crocodile hole 6)shutter hole 7)decorative hole 8)plum hole 9)drum hole 10)pentagon hole 11)hexagonal hole 12)scales hole 13)micro hole 14)heterotypic hole 15)rectangular hole 16)diamond hole 17)five-pointed star hole 18)eight mesh 19)special-shaped hole 20)fish scale hole 21)triangle hole 22)long waist hole


Perforated Stainless Steel Size
ss 304 Hexagonal hole, square hole, long round hole
stock size 1m*2m
Thickness(mm) Hole Diameter(mm) Edge Diameter(mm)
1.5 2*20,long round hole 3.5
1 3*20,long round hole 3
1 5*20,long round hole 5
1.5 5*20,long round hole 5
1.5 10*10,square hole 5
1 10,hexagonal hole 3

ss 304 Microwell Plate
Stock Size 0.2mm-0.8mm hole
Thickness(mm) Hole Diameter(mm)l Space Between(mm) Spec.(mm)
0.1 0.2 0.3 380*500
0.2 0.3 0.3 500*600
0.3 0.4 0.4 500*600
0.4 0.5 0.5 500*700
0.4 0.5 0.5 500*600
0.5 0.8 0.8 500*600
0.7 0.8 0.8 500*600

ss 304 circle mesh
stock size 1m*2m
Thickness(mm) Hole Diameter(mm) lEdge Diameter(mm)
0.4 0.4 1
0.5 0.5 0.5
0.5 0.5 0.7
0.8 0.8 0.8
0.5 1 1
0.5 1.5 1.5
0.5 2 2
0.5 3 2
0.5 5 3
0.5 8 4
1 1 1
1 1.2 1.2
1 1.5 1.5
1 1.8 2
1 2 2
1 3 2
1 4 3
1 5 3
1 6 3
1 8 4
1 10 5
1 15 5
1 20 10
1.5 1.5 1.5
1.5 2 2
1.5 2.5 2.5
1.5 3 2
1.5 4 3
1.5 5 3
1.5 6 3
1.5 8 4
1.5 10 5
1.5 15 5
1.5 20 10
2 2 2
2 3 2
2 4 3
2 5 3
2 6 3
2 8 4
2 10 5
2 15 5
2 20 10
3 3 3
3 5 3
3 8 4
3 10 5

Our Machines

The production capacity of our fatory is about 2000tons per year .We have many machines to meet all customers requirements.For example:brush,cutting,slitting ,embossed,etching,mirror,PVD color,Water plating,Laser.



Products Usage

In the arts and crafts, the combination of color stainless steel and printing, can use etching and grinding and mesh point method with the process, the production of fade less three-dimensional relief fresco, hanging screen. Additional, make household electric appliance, cooker, kitchen equipment, toilet appliance with color stainless steel, will be loved by consumer. Stainless steel decorative plate is a very good decorative material, with its decoration to show the elegant quality.

Customers feedbacks

We win lots of stable customers for our good quality and nice service,hope you will become our one of good customers.Contact us freely!

<
